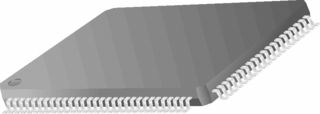

Single-chip 10Mbps Ethernet controller for surface mount applications. Features 2 ports, 100-pin LQFP package with tin-matte plating, and operates at 3.3V. Offers a data rate of 10Mbps with a maximum supply voltage of 3.465V and a minimum of 3.135V. This RoHS compliant component has a maximum operating temperature of 70°C and a minimum of 0°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cirrus Logic CS8900A-CQ3Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cirrus Logic CS8900A-CQ3Z technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Data Rate | 10Mbps |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 10mA |
| Max Supply Voltage (DC) | 3.465V |
| Min Supply Voltage (DC) | 3.135V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | -300mV |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Operating Supply Current | 95mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 55mA |
| Termination | SMD/SMT |
| Width | 14mm |
| RoHS | Compliant |
Download the complete datasheet for Cirrus Logic CS8900A-CQ3Z to view detailed technical specifications.
