Dual operational amplifier IC featuring a 1.4MHz gain bandwidth product and 100dB voltage gain. This power amplifier offers a 1.5A maximum output current per channel and a 40V maximum supply voltage. With a 13.6kHz bandwidth and 1.4V/µs slew rate, it operates from a 5V to 40V supply. Packaged in a TO-220 case for through-hole mounting, this RoHS compliant component is suitable for general amplification applications.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Cirrus Logic PA75CX technical specifications.
General
Amplifier Type
POWER
Bandwidth
13.6kHz
Package/Case
TO-220
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1.4MHz
Input Bias Current
100nA
Input Offset Voltage (Vos)
1mV
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Current
1.5A
Max Supply Voltage
40V
Min Supply Voltage
5V
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Operating Supply Current
8mA
Operating Supply Voltage
30V
Output Current per Channel
1.5A
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Apex Precision Power®
Slew Rate
1.4V/µs
Technology
BIPOLAR
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic PA75CX Datasheet
Download the complete datasheet for Cirrus Logic PA75CX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

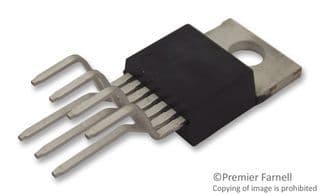

Product Images
