SMD crystal oscillator operating at 32.768kHz with a load capacitance of 7pF. Features a frequency tolerance of 20ppm and an ESR of 70kR. Designed for surface mount applications, this component operates within a temperature range of -40°C to 85°C. It is lead-free and RoHS compliant, supplied in cut tape packaging.
Frequency32.768kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Citizen CM315D32768DZYT technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 70kR |
| Frequency | 32.768kHz |
| Frequency Tolerance | 20ppm |
| Lead Free | Lead Free |
| Load Capacitance | 7pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CM315D |
Compliance
| RoHS | Compliant |
Datasheet
Citizen CM315D32768DZYT Datasheet
Download the complete datasheet for Citizen CM315D32768DZYT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

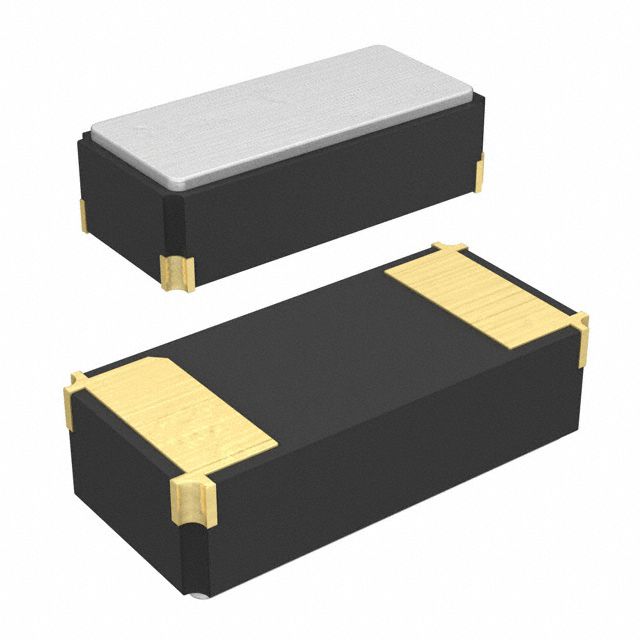

Product Images
