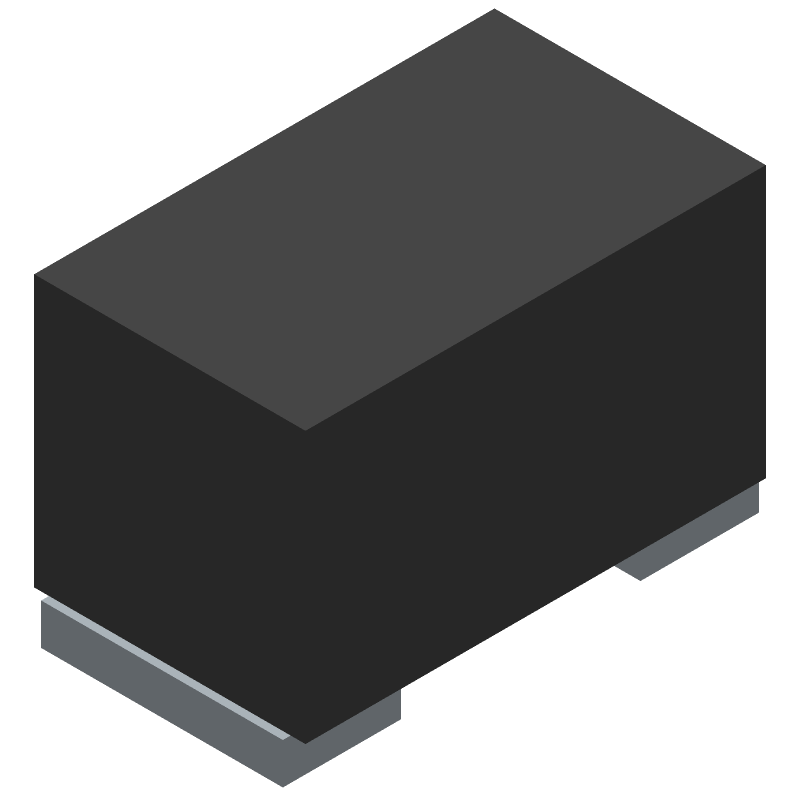

Surface mount fixed inductor featuring a 3.9nH inductance with a 5% tolerance, designed for RF applications. This unshielded, wirewound ceramic core component offers a current rating of 1.7A and a low DCR of 0.045 Ohms. Operating across a temperature range of -40°C to 125°C, it boasts a Q factor of 98 at 250MHz and a self-resonant frequency of 9.5GHz. The compact 0402 (1005 metric) case size measures 1.09mm x 0.71mm x 0.61mm.
Package0402
Current Rating1.7A
Inductance3.9nH
Quick Jump:
Technical Specifications
Coilcraft 0402HP-3N9XJLU technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ceramic
Current Rating
1.7A
Height
0.61mm
Inductance
3.9nH
Inductance Tolerance
5%
Lead Free
Contains Lead
Length
1.09mm
Max DC Current
1.7A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Packaging
Cut Tape
Q Factor
98
Reach SVHC Compliant
No
RoHS Compliant
Yes
Self Resonant Frequency
9.5GHz
Series
0402HP
Termination
SMD/SMT
Test Frequency
250MHz
Tolerance
5%
Weight
2.3E-05oz
Width
0.71mm
Compliance
RoHS
Compliant
Datasheet
Coilcraft 0402HP-3N9XJLU Datasheet
Download the complete datasheet for Coilcraft 0402HP-3N9XJLU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
