Aluminum electrolytic capacitor with 330µF capacitance and 450V DC rated voltage. Features a 20% tolerance, 553mΩ ESR at 120Hz, and a 2A ripple current rating. Designed for through-hole PCB mounting with snap-in termination, measuring 35mm in diameter and 40mm in height. Operates within a temperature range of -25°C to 85°C with a rated life of 3000 hours.
PackageRadial
Voltage450V
Capacitance330uF
Voltage Rating450V
Quick Jump:
Technical Specifications
Cornell Dubilier 380LX331M450A042 technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |

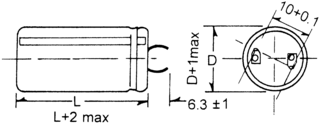

| Diameter | 35mm |
| Dielectric | X7R |
| Dielectric Material | Aluminium |
| Dissipation Factor | 20% |
| ESR (Equivalent Series Resistance) | 553mR |
| Height | 40mm |
| Lead Diameter | 0.8mm |
| Lead Length | 6.3mm |
| Lead Pitch | 10mm |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 80 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2A |
| RoHS Compliant | Yes |
| Series | 380LX |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
| Weight | 2.186986oz |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier 380LX331M450A042 Datasheet
Download the complete datasheet for Cornell Dubilier 380LX331M450A042 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
