Polypropylene film capacitor with 1µF capacitance and 1.6kV DC rated voltage. Features axial leads for through-hole PCB mounting, a 10% tolerance, and an operating temperature range of -55°C to +105°C. Constructed with a polypropylene dielectric, it offers 5mΩ ESR and a 2000-hour life rating. This RoHS compliant component has a diameter of 39mm and a length of 46mm.
PackageAxial
Voltage1.6kV
Capacitance1uF
Voltage Rating1.6kV
Quick Jump:
Technical Specifications
Cornell Dubilier 940C16W1K-F technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Axial |
| Construction | AXIAL |
| Diameter | 39mm |
| Dielectric | PP |
| Dielectric Material | PP |
| ESR (Equivalent Series Resistance) | 5mR |
| Lead Diameter | 1.2mm |
| Lead Free | Lead Free |
| Lead Length | 41mm |
| Length | 46mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 940C |
| Termination | Axial |
| Tolerance | 10% |
| Voltage | 1.6kV |
| Voltage Rating | 1.6kV |
| Voltage Rating (AC) | 630V |
| DC Rated Voltage | 1.6kV |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier 940C16W1K-F Datasheet
Download the complete datasheet for Cornell Dubilier 940C16W1K-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

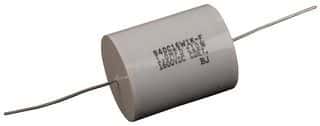

Product Images
