CORNELL DUBILIER

BLC450J701B4E

Datasheet

Film Cap 45uF 700V PP 5% Radial 85C 3.6mR

Cornell Dubilier

BLC450J701B4E

Name: BLC450J701B4E Cornell Dubilier
Brand: Cornell Dubilier
SKU: BLC450J701B4E

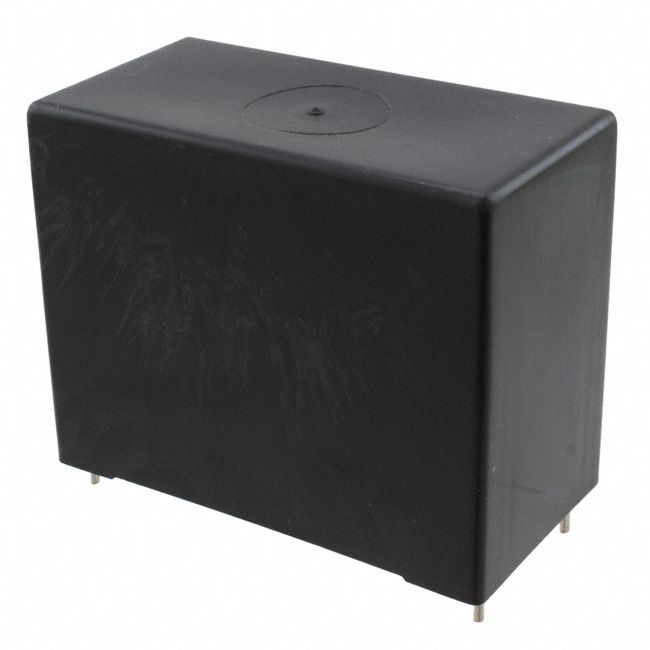

Film Cap 45uF 700V PP 5% Radial 85C 3.6mR

General purpose film capacitor with 45µF capacitance and 700V DC rating. Features polypropylene dielectric, 5% tolerance, and low 3.6mΩ ESR. Radial package with 20.3mm lead pitch, suitable for through-hole PCB mounting. Operating temperature range from -45°C to 85°C.

PackageRadial

Voltage700V

Capacitance45uF

Voltage Rating700V

Quick Jump:

Technical Specifications

Cornell Dubilier BLC450J701B4E technical specifications.

General

Capacitance	45uF
Package/Case	Radial
Depth	30mm
Dielectric	PP
Dielectric Material	Polypropylene
ESR (Equivalent Series Resistance)	3.6mR
Height	45mm
Height - Seated (Max)	1.772inch
Lead Diameter	1.2mm
Lead Length	6mm
Lead Pitch	20.3mm
Length	57.5mm
Max Operating Temperature	85°C
Min Operating Temperature	-45°C
Mount	Through Hole, PCB
Package Quantity	32
Packaging	Bulk
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	BLC
Termination	PC Pins
Tolerance	5%
Voltage	700V
Voltage Rating	700V
Voltage Rating (AC)	230V
DC Rated Voltage	700V
Width	1.181inch
