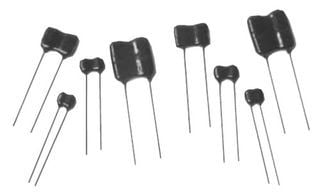

Radial leaded mica capacitor with 47pF capacitance and 5% tolerance. Features a 500V DC rated voltage and operates across a -55°C to 125°C temperature range. Dielectric material is mica, with a temperature coefficient of -20/+100ppm/°C. Through-hole mount design with a 3.6mm lead pitch. RoHS compliant.
PackageRadial
Voltage500V
Capacitance47pF
Voltage Rating500V
Quick Jump:
Technical Specifications
Cornell Dubilier CD10ED470JO3F technical specifications.
General
Capacitance
47pF
Package/Case
Radial
Construction
RADIAL
Depth
4.8mm
Dielectric Material
Mica
Features
General Purpose
Height
8.6mm
Lead Diameter
0.4mm
Lead Free
Lead Free
Lead Pitch
3.6mm
Length
9.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CD10
Termination
Radial
Tolerance
5%
Voltage
500V
Voltage Rating
500V
DC Rated Voltage
500V
Width
4.8mm
Compliance
RoHS
Compliant
