The CD10FC301JO3F is a 300V ceramic capacitor with a capacitance of 300pF and a tolerance of 5%. It features a radial leaded package and is RoHS compliant. The capacitor has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is suitable for general-purpose applications.
PackageRadial
Voltage300V
Capacitance300pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Cornell Dubilier CD10FC301JO3F technical specifications.
General
| Capacitance | 300pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Dielectric Material | Mica |
| Features | General Purpose |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | CD10 |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier CD10FC301JO3F Datasheet
Download the complete datasheet for Cornell Dubilier CD10FC301JO3F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

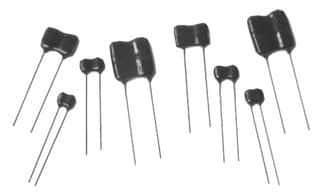

Product Images
