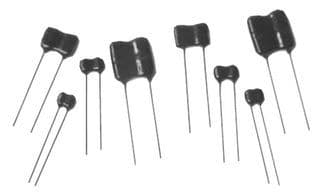

Mica capacitor with 24pF capacitance and 5% tolerance, rated for 500V DC. Features a radial package for through-hole PCB mounting, with a 5.9mm lead pitch and 0.6mm lead diameter. Operates across a temperature range of -55°C to 125°C, constructed with mica dielectric for general-purpose applications. Dimensions are 11.4mm length, 4.3mm width, and 9.1mm height.
PackageRadial
Capacitance24pF
Voltage Rating500V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Cornell Dubilier CD15ED240JO3F technical specifications.
General
Capacitance
24pF
Package/Case
Radial
Construction
RADIAL
Depth
4.3mm
Dielectric Material
Mica
Features
General Purpose
Height
0.36inch
Lead Diameter
0.6mm
Lead Pitch
5.9mm
Length
0.45inch
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CD15
Termination
Radial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Cornell Dubilier CD15ED240JO3F Datasheet
Download the complete datasheet for Cornell Dubilier CD15ED240JO3F to view detailed technical specifications.
