Cornell Dubilier
LP153M016H3P3
15000uF 16V Aluminum Electrolytic Capacitor, Snap-In, 35x30mm, 46mR ESR
Aluminum electrolytic capacitor with 15,000µF capacitance and 16V DC rated voltage. Features 20% tolerance, 46mΩ ESR at 120Hz, and 3A ripple current capability. Designed for through-hole mounting with snap-in terminals, measuring 35mm in diameter and 30mm in height. Operates from -40°C to 105°C with a 1000-hour life expectancy at rated conditions.
PackageRadial
Capacitance15mF
Voltage Rating16V
MountingThrough Hole
Quick Jump:
Technical Specifications
Cornell Dubilier LP153M016H3P3 technical specifications.
General
| Capacitance | 15mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 30% |
| ESR (Equivalent Series Resistance) | 46mR |
| Height | 30mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Length | 30mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 105 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 3A |
| RoHS Compliant | Yes |
| Series | LP |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier LP153M016H3P3 Datasheet
Download the complete datasheet for Cornell Dubilier LP153M016H3P3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

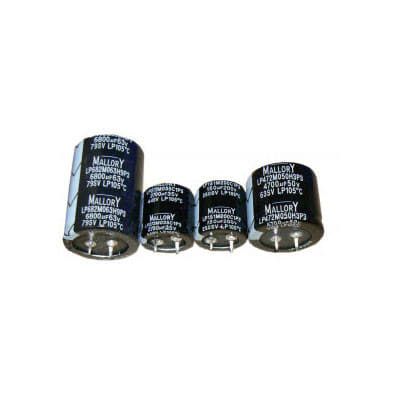

Product Images
