CORNELL DUBILIER

MC12FA470J-F

Datasheet

Cornell Dubilier

MC12FA470J-F

Name: MC12FA470J-F Cornell Dubilier
Brand: Cornell Dubilier
SKU: MC12FA470J-F

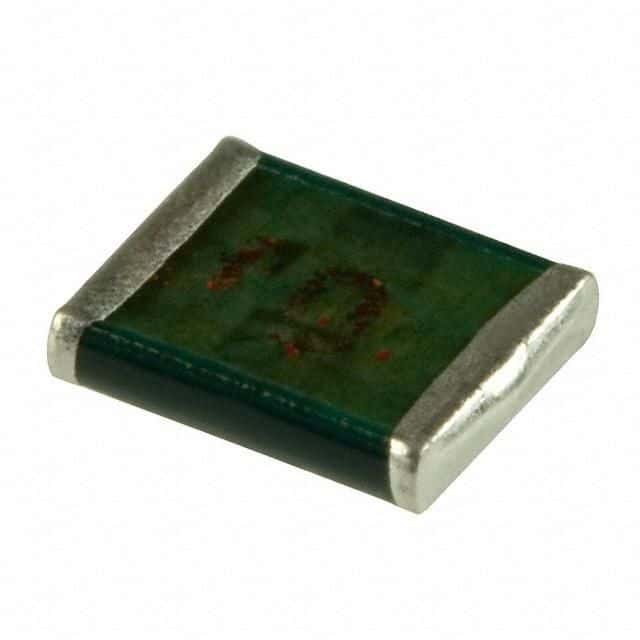

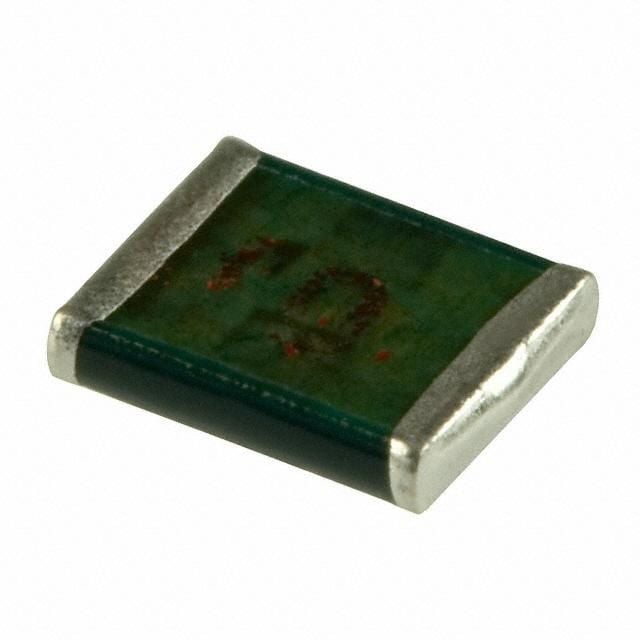

Mica Capacitor 47pF 100V 5% 1210 SMD

Surface mount multilayer mica capacitor, 47pF capacitance, 100V DC rated voltage, and 5% tolerance. Features a 1210 case code (3.2mm x 2.5mm x 2mm) with mica dielectric material and a dissipation factor of 0.1%. Operates across a temperature range of -55°C to 125°C with a temperature coefficient of 25+/-25ppm/°C. RoHS compliant and lead-free.

Package1210

Voltage100V

Capacitance47pF

Voltage Rating100V

Quick Jump:

Technical Specifications

Cornell Dubilier MC12FA470J-F technical specifications.

General

Capacitance	47pF
Case Code	1210
Case Code (Imperial)	1210
Case Code (Metric)	3225
Package/Case	1210
Construction	Flat
Depth	2.5mm
Dielectric Material	Mica
Dissipation Factor	0.1%
Height	2mm
Lead Free	Lead Free
Length	3.2mm
Max Operating Temperature	125°C
Military Standard	Not
Min Operating Temperature	-55°C
Mount	Surface Mount, PCB
Package Quantity	100
Packaging	Bulk
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	MC
Termination	SMD/SMT
Tolerance	5%
Voltage	100V
Voltage Rating	100V
DC Rated Voltage	100V
Weight	0.000564oz
Width	2.5mm
