Aluminum electrolytic capacitor, polarized, wet aluminum construction, 1mF capacitance with ±20% tolerance. Features a 50V DC rated voltage, 1.35A ripple current, and 130mΩ ESR. Designed for through-hole PCB mounting with radial leads (0.6mm diameter, 7.5mm pitch). Operating temperature range from -40°C to 85°C, with a 2000-hour life rating. RoHS compliant.
PackageRadial
Capacitance1mF
Voltage Rating50V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Cornell Dubilier SK102M050ST technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 130mR |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.6mm |
| Lead Length | 15mm |
| Lead Pitch | 7.5mm |
| Length | 25mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 360 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.35A |
| RoHS Compliant | Yes |
| Series | SK |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier SK102M050ST Datasheet
Download the complete datasheet for Cornell Dubilier SK102M050ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

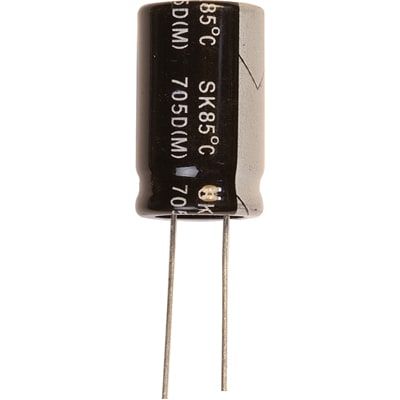

Product Images
