Aluminum electrolytic capacitor with 2200µF capacitance and 25V DC voltage rating. Features a 20% tolerance, 140mΩ ESR, and 1.55A ripple current capability. Designed with a radial package measuring 13mm in diameter and 26mm in height, suitable for through-hole PCB mounting with a 5mm lead pitch. Operates across a temperature range of -40°C to 85°C with a rated life of 2000 hours.
PackageRadial
Capacitance2.2mF
Voltage Rating25V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Cornell Dubilier SK222M025ST technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Diameter | 13mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 140mR |
| Height | 26mm |
| Lead Diameter | 0.6mm |
| Lead Length | 15mm |
| Lead Pitch | 5mm |
| Length | 26mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.55A |
| RoHS Compliant | Yes |
| Series | SK |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier SK222M025ST Datasheet
Download the complete datasheet for Cornell Dubilier SK222M025ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

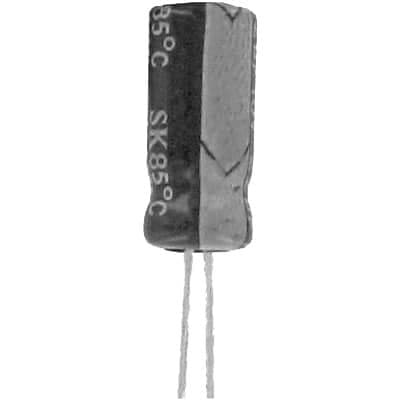

Product Images
