Aluminum electrolytic capacitor, 470µF capacitance, 25V DC rated voltage, 20% tolerance. Features 390mΩ ESR, 540mA ripple current, and 2000 hours life at 85°C. Radial package with 10mm diameter, 16mm height, 5mm lead pitch, and 0.6mm lead diameter. Through-hole mounting for PCB applications.
PackageRadial
Capacitance470uF
Voltage Rating25V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Cornell Dubilier SK471M025ST technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 390mR |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Length | 15mm |
| Lead Pitch | 5mm |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 540mA |
| RoHS Compliant | Yes |
| Series | SK |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier SK471M025ST Datasheet
Download the complete datasheet for Cornell Dubilier SK471M025ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

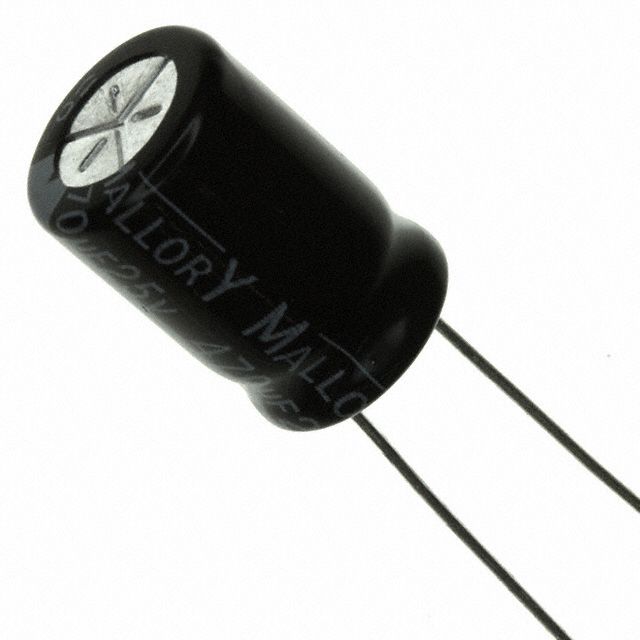

Product Images
