SPDT Electromechanical Relay with a 500mA contact current rating and 200VDC contact voltage rating. Features a 12VDC coil voltage, 12mA coil current, and 1kΩ coil resistance. This non-latching relay offers a 0.5ms operate and release time, with through-hole PCB mounting and PC pin termination. Operates within a -20°C to 85°C temperature range and is RoHS compliant.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Coto 2341-12-000 technical specifications.
General
| Coil Current | 12mA |
| Coil Resistance | 1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 500mA |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 20.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 0.5ms |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Release Time | 0.5ms |
| RoHS Compliant | Yes |
| Row Spacing | 2.54mm |
| Series | 2300 |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Width | 20.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 2341-12-000 Datasheet
Download the complete datasheet for Coto 2341-12-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

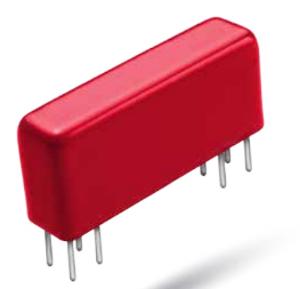

Product Images
