SPDT electromechanical relay featuring a 500mA switching current and 200VDC switching voltage. This non-latching relay operates with a 12VDC coil voltage, 12mA coil current, and 1kΩ coil resistance. Designed for through-hole mounting with PC pin termination, it offers a 0.5ms operate and release time. Operating within a -20°C to 85°C temperature range, this RoHS compliant component is packaged for rail/tube distribution.
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 2341-12-020 technical specifications.
General
| Coil Current | 12mA |
| Coil Resistance | 1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 500mA |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.5ms |
| RoHS Compliant | Yes |
| Series | 2300 |
| Switching Current | 500mA |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Width | 20.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 2341-12-020 Datasheet
Download the complete datasheet for Coto 2341-12-020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

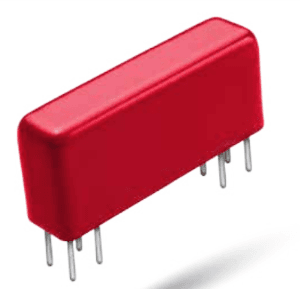

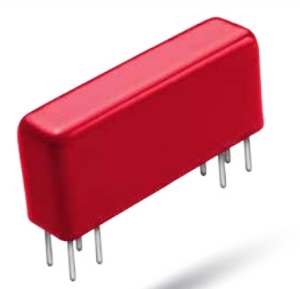

Product Images
