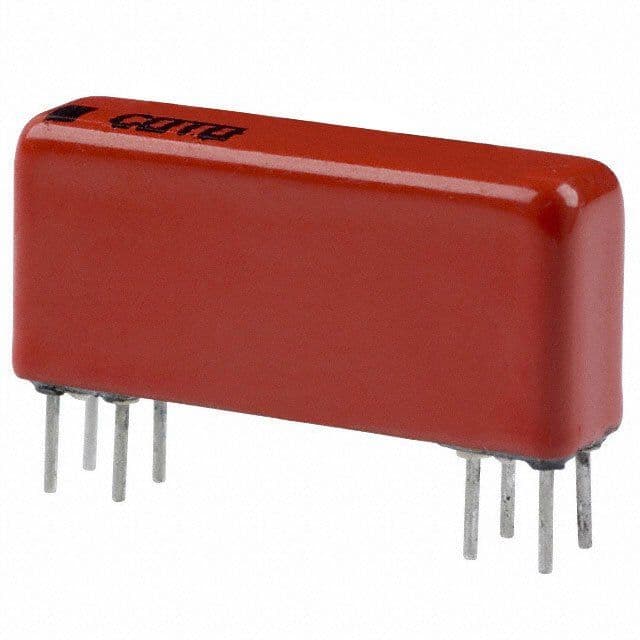

DPDT Reed Relay, 2 Form C, featuring a 5V DC coil voltage with 28.6mA coil current and 175 Ohm coil resistance. Contact ratings include 250mA current and 100VDC voltage, with a 1.5ms operate time and 2ms release time. This through-hole mounted, lead-free component is housed in a DIP package, measuring 20.6mm in length, 20.57mm in width, and 9.4mm in height, operating within a -20°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Coto 2342-05-000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Coil Current | 28.6mA |
| Coil Resistance | 175R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 250mA |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Length | 20.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 1.5ms |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| Release Time | 2ms |
| RoHS Compliant | Yes |
| Series | 2300 |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Width | 20.57mm |
| RoHS | Compliant |
