SPDT reed relay featuring a 5VDC coil voltage and 200 Ohm coil resistance, drawing 25mA. Offers a 250mA contact current rating with Ruthenium contacts and a 100V switching voltage. Through-hole mounting with a DIP package, measuring 19.7mm length, 19.5mm width, and 9.4mm height. Operate and release times are 1ms, with an operating temperature range of -20°C to 85°C. Lead-free and RoHS compliant.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 8L41-05-001 technical specifications.
General
| Approvals | UL |
| Package/Case | DIP |
| Coil Current | 25mA |
| Coil Resistance | 200R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 250mA |
| Contact Material | Ruthenium |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Length | 19.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 1ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Release Time | 1ms |
| RoHS Compliant | Yes |
| Series | 8L |
| Switching Current | 250mA |
| Switching Voltage | 100V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Width | 19.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 8L41-05-001 Datasheet
Download the complete datasheet for Coto 8L41-05-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

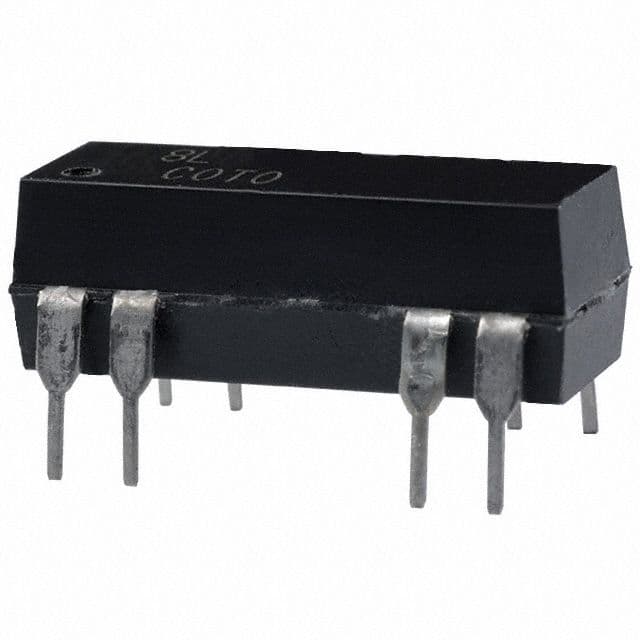

Product Images
