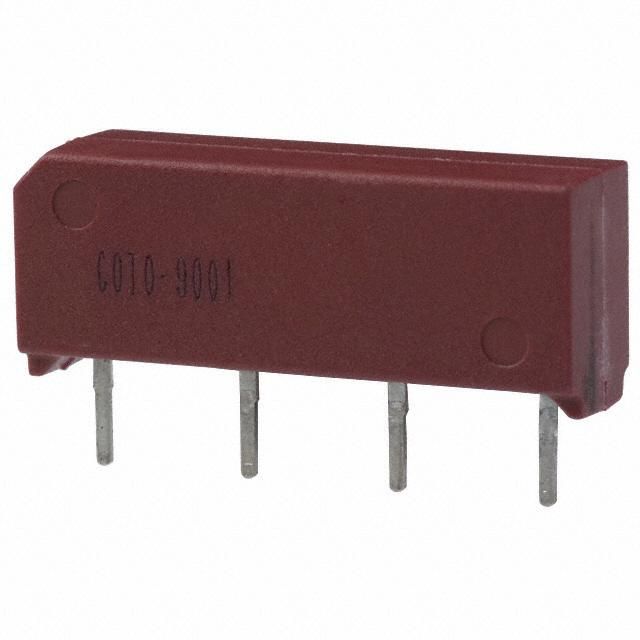

SPST-NO reed relay featuring a 5VDC coil voltage and 500 Ohm coil resistance, drawing 10mA coil current. This through-hole mount component offers a 500mA contact current rating with Ruthenium contacts and a 0.35ms operate time. Designed with a SIP package, it operates within a -20°C to 85°C temperature range and is RoHS compliant.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 9001-05-01 technical specifications.
General
Approvals
UL, CSA
Package/Case
SIP
Coil Current
10mA
Coil Resistance
500R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
500mA
Contact Material
Ruthenium
Height
7.6mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operate Time
0.35ms
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
Release Time
0.1ms
RoHS Compliant
Yes
Series
9000
Termination
PC Pin
Throw Configuration
SPST
Width
19.3mm
Compliance
RoHS
Compliant
Datasheet
Coto 9001-05-01 Datasheet
Download the complete datasheet for Coto 9001-05-01 to view detailed technical specifications.
