Single Pole Single Throw (SPST) dry reed relay featuring a 1 Form A contact configuration. This through-hole mounted component offers a 0.5A contact current rating and a 200VDC switching voltage. The relay operates with a 12VDC coil voltage and 12mA coil current, boasting a 1kR coil resistance. With a fast 0.35ms operate time and 0.1ms release time, it is RoHS compliant and lead-free, suitable for operation between -20°C and 85°C.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 9001-12-00 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | SIP |
| Coil Current | 12mA |
| Coil Resistance | 1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 500mA |
| Height | 7.6mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.35ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Release Time | 0.1ms |
| RoHS Compliant | Yes |
| Series | 9000 |
| Switching Current | 500mA |
| Switching Voltage | 200V |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 19.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 9001-12-00 Datasheet
Download the complete datasheet for Coto 9001-12-00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

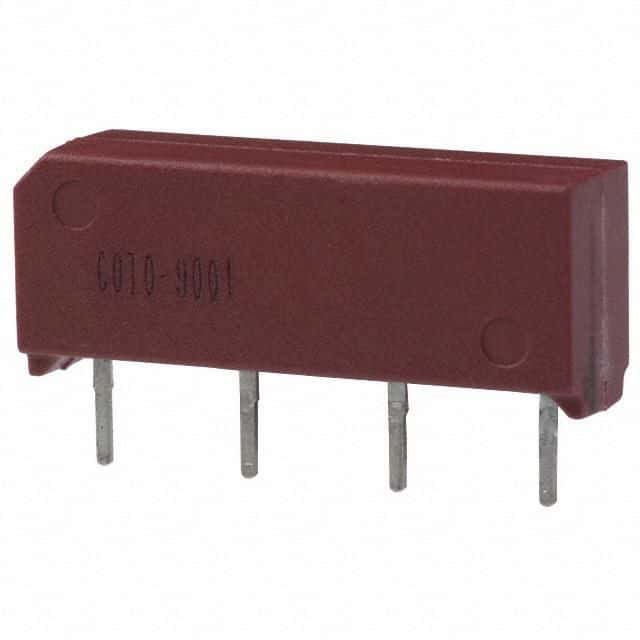

Product Images
