SPST-NO reed relay featuring a 5VDC coil voltage and 500 Ohm coil resistance, drawing 10mA coil current. This through-hole mount relay offers a 500mA contact current rating and operates within a -20°C to 85°C temperature range. The dry contact reed relay has an operate time of 0.5ms and a release time of 0.2ms, with dimensions of 19.3mm x 5.08mm x 7.6mm. It is RoHS compliant and lead-free, with UL and CSA approvals.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 9007-05-01 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | SIP |
| Coil Current | 10mA |
| Coil Resistance | 500R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Height | 7.6mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Release Time | 0.2ms |
| RoHS Compliant | Yes |
| Series | 9000, Spartan |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 19.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 9007-05-01 Datasheet
Download the complete datasheet for Coto 9007-05-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

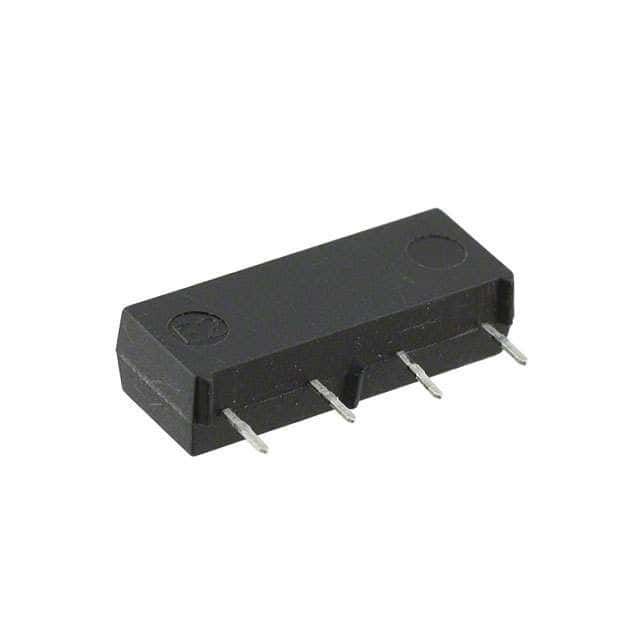

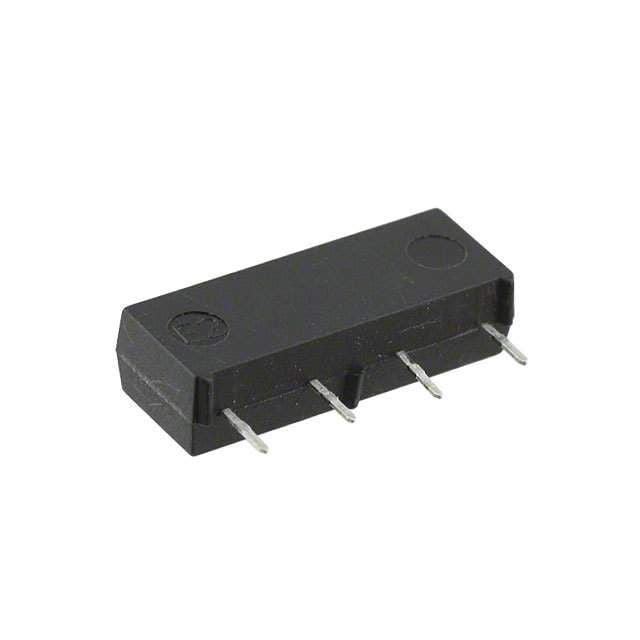

Product Images
