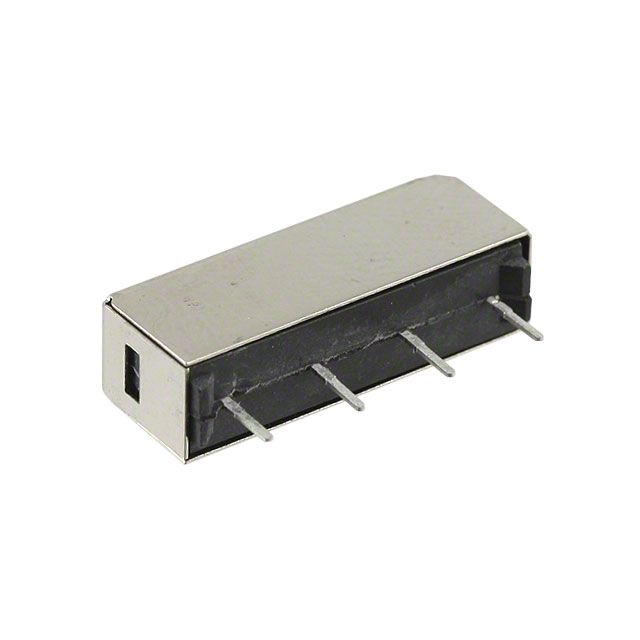

SPST momentary reed relay featuring a 5VDC, 5mA coil with 25mW power consumption and 1kΩ resistance. Contact ratings include 0.5A and 200VDC, with Ruthenium contact material. This through-hole, straight mount component offers a 0.5ms operate time and 0.2ms release time, operating within a -20°C to 85°C temperature range. Shielded for enhanced performance, it is RoHS compliant and available in SIP packaging.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 9007-05-40 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | SIP |
| Coil Current | 5mA |
| Coil Resistance | 1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Features | Shielded |
| Height | 8.1mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.2ms |
| RoHS Compliant | Yes |
| Series | 9000, Spartan |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
