SPST-NO reed relay featuring a 5VDC coil with 500 Ohm resistance and 10mA coil current. Offers a 500mA contact current rating with Ruthenium contacts. Designed for through-hole mounting with PC pin termination in a SIP package. Operating temperature range from -20°C to 85°C, with a 0.5ms operate time and 0.3ms release time.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Coto 9091-05-01 technical specifications.
General
| Package/Case | SIP |
| Coil Current | 10mA |
| Coil Resistance | 500R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Height | 6.98mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.5ms |
| Package Quantity | 31 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Release Time | 0.3ms |
| RoHS Compliant | Yes |
| Series | 9091 |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 15.24mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 9091-05-01 Datasheet
Download the complete datasheet for Coto 9091-05-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

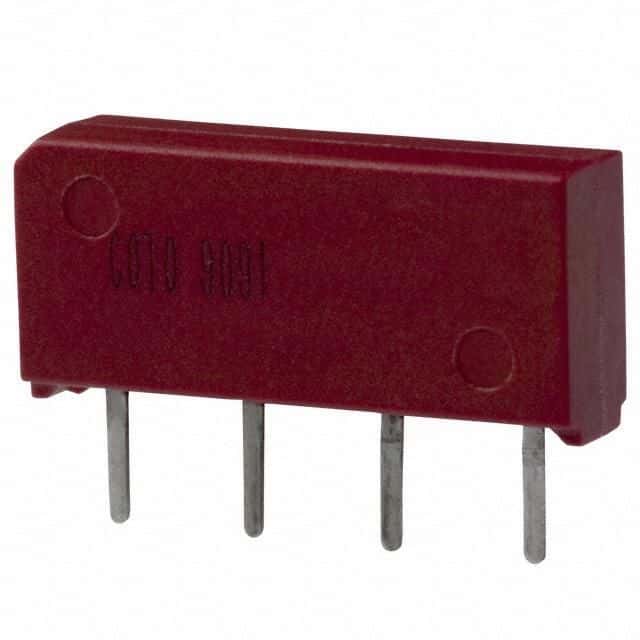

Product Images
