SPST-NO reed relay featuring a 5VDC coil voltage and 25mA coil current, with a coil resistance of 200 Ohms. This surface mount device offers a contact current rating of 500mA and a contact material of Ruthenium. Operate time is 0.4ms with a release time of 0.2ms, suitable for operation between -20°C and 85°C. The relay is RoHS compliant and lead-free.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Coto 9402-05-20 technical specifications.
General
| Package/Case | SMD/SMT |
| Coil Current | 25mA |
| Coil Resistance | 200R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Operate Time | 0.4ms |
| Packaging | Rail/Tube |
| Release Time | 0.2ms |
| RoHS Compliant | Yes |
| Series | 9400 |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Coto 9402-05-20 Datasheet
Download the complete datasheet for Coto 9402-05-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

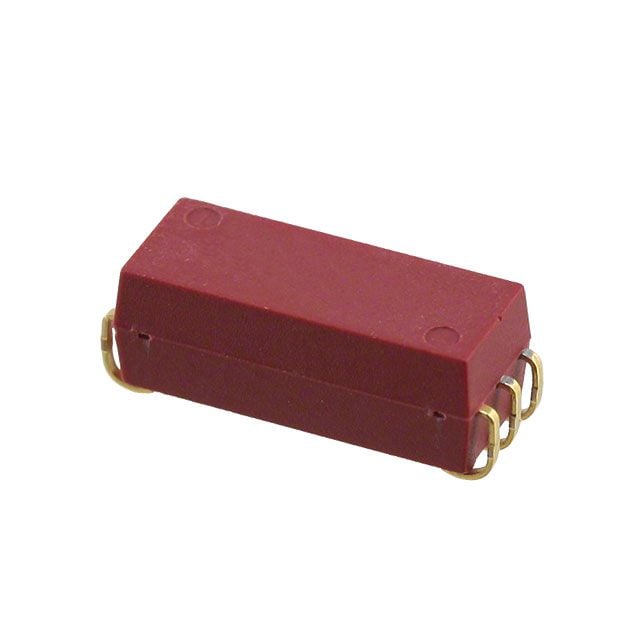

Product Images
