Surface mount reed relay featuring a 5VDC coil voltage and 150 Ohm coil resistance, drawing 33.3mA. This SPST-NO relay offers a 250mA contact current rating with Ruthenium contacts. Designed for surface mounting, it measures 9.65mm in length, 9.6mm in width, and 4.82mm in height, with a 1.02mm lead pitch. Operating within a -20°C to 85°C temperature range, it boasts a 0.25ms operate time and 0.05ms release time.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Coto 9802-05-20 technical specifications.
General
| Package/Case | SMD/SMT |
| Coil Current | 33.3mA |
| Coil Resistance | 150R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 250mA |
| Contact Material | Ruthenium |
| Height | 4.82mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.02mm |
| Length | 9.65mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Poles | 1 |
| Operate Time | 0.25ms |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Release Time | 0.05ms |
| RoHS Compliant | Yes |
| Row Spacing | 9.6mm |
| Series | 9800 |
| Throw Configuration | SPST |
| Width | 9.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto 9802-05-20 Datasheet
Download the complete datasheet for Coto 9802-05-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

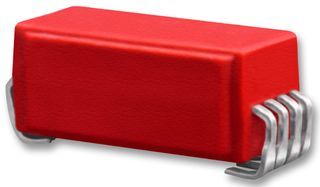

Product Images
