Surface mount SPST normally open dry reed switch with a 0.35A current rating and 100VAC/140VDC voltage rating. Features a 5VA power rating and 160mOhm maximum contact resistance. Molded package with SMD/SMT termination, operating temperature range of -40°C to 125°C. Lead-free and RoHS compliant, supplied on tape and reel.
PackageMolded
MountingSurface Mount
Quick Jump:
Technical Specifications
Coto CT05-1535-J1 technical specifications.
General
Package/Case
Molded
Height
2.31mm
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CT05
Switch Type
Dry Reed
Termination
SMD/SMT
Throw Configuration
SPST
Width
2.31mm
Compliance
RoHS
Compliant
Datasheet
Coto CT05-1535-J1 Datasheet
Download the complete datasheet for Coto CT05-1535-J1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

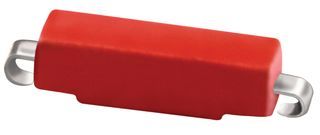

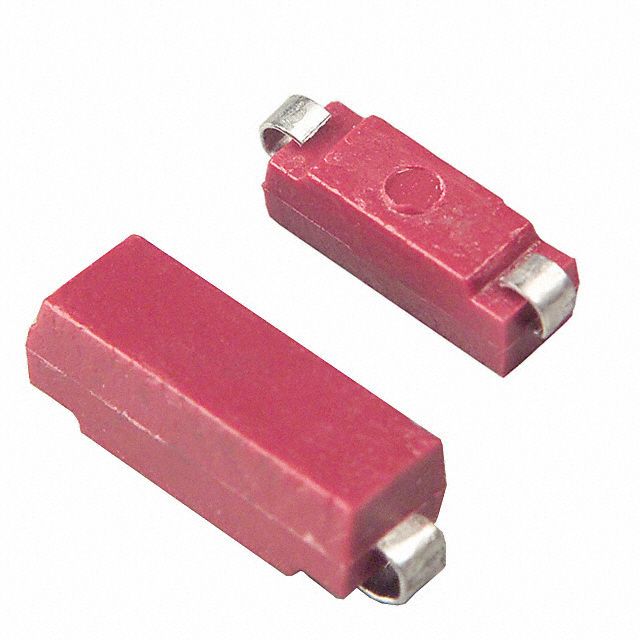

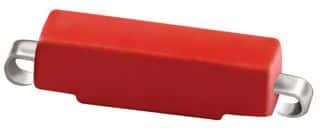

Product Images
