Surface mount dry reed switch featuring a normally open (N.O.), single-pole, single-throw (SPST) configuration. This component offers a 500mA contact current rating and a 140VAC/200VDC voltage rating, with a maximum power handling of 10VA. Constructed with ruthenium contacts and a molded package, it operates within a temperature range of -40°C to 125°C and exhibits a contact resistance of 200mOhm. Packaged on tape and reel for automated assembly.
PackageMolded
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Coto CT10-1540-G1 technical specifications.
General
| Package/Case | Molded |
| Contact Current Rating | 500mA |
| Contact Material | Ruthenium |
| Current Rating | 500mA |
| Height | 2.92mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 16.38mm |
| Series | CT10 |
| Switch Type | Dry Reed |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 200V |
| Width | 11.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Coto CT10-1540-G1 Datasheet
Download the complete datasheet for Coto CT10-1540-G1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

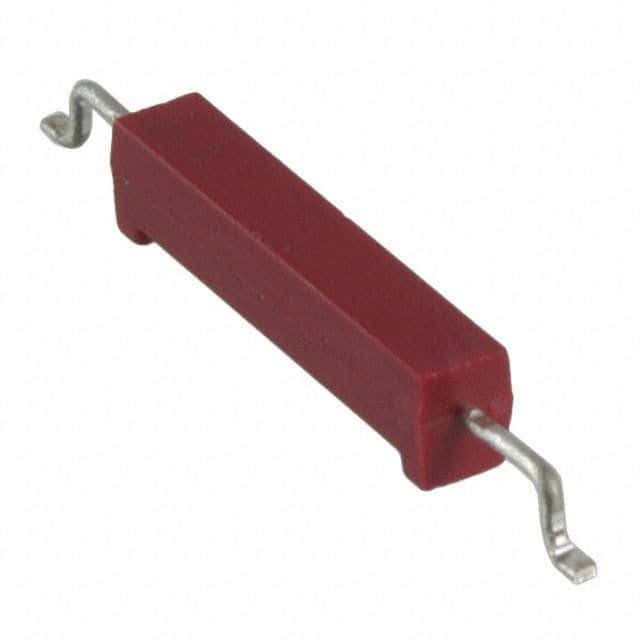

Product Images
