Single Color Orange LED emitter, T-1 3/4 (5mm) package, featuring a clear, colorless dome lens style. Delivers 14680mcd luminous intensity with a 15° viewing angle and 596nm wavelength. Operates with a 20mA forward current and 5V reverse voltage, within a -40°C to 100°C temperature range. Through-hole mount, radial package, RoHS compliant, with a 130W power dissipation.
PackageRadial
MountingThrough Hole
Power130W
Quick Jump:
Technical Specifications
Cree C503B-AAN-CY0B0251 technical specifications.
General
| Package/Case | Radial |
| Color | Orange |
| Depth | 5.8mm |
| Forward Current | 20mA |
| Height | 13.3mm |
| Illumination Color | Orange |
| Length | 5.8mm |
| Lens Color | Colorless |
| Lens Style | Dome, Round |
| Lens Transparency | Clear |
| Luminous Intensity | 14680mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 130W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | C |
| Viewing Angle | 15° |
| Wavelength | 596nm |
Compliance
| RoHS | Compliant |
Datasheet
Cree C503B-AAN-CY0B0251 Datasheet
Download the complete datasheet for Cree C503B-AAN-CY0B0251 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

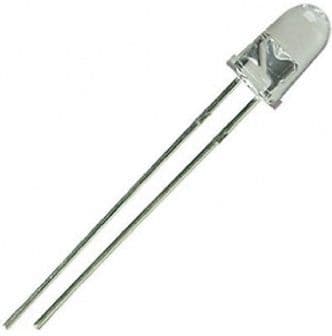

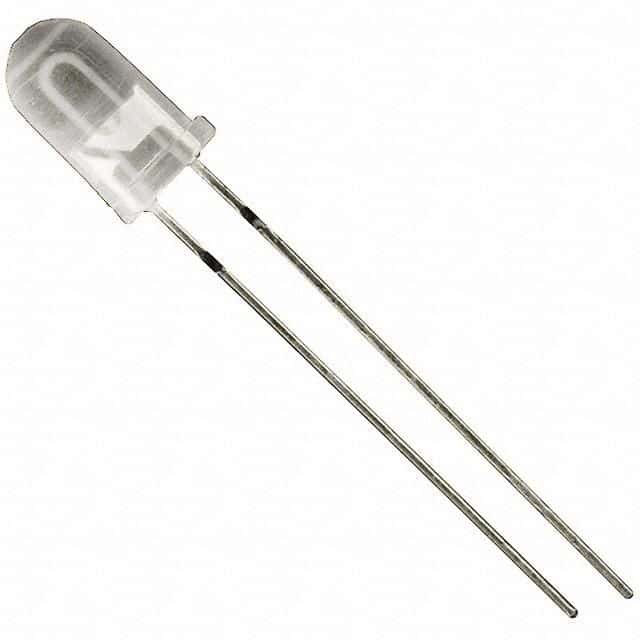

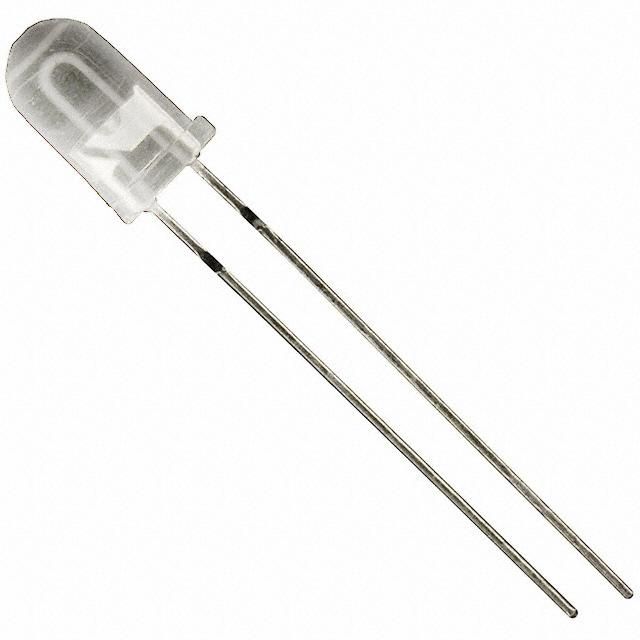

Product Images
