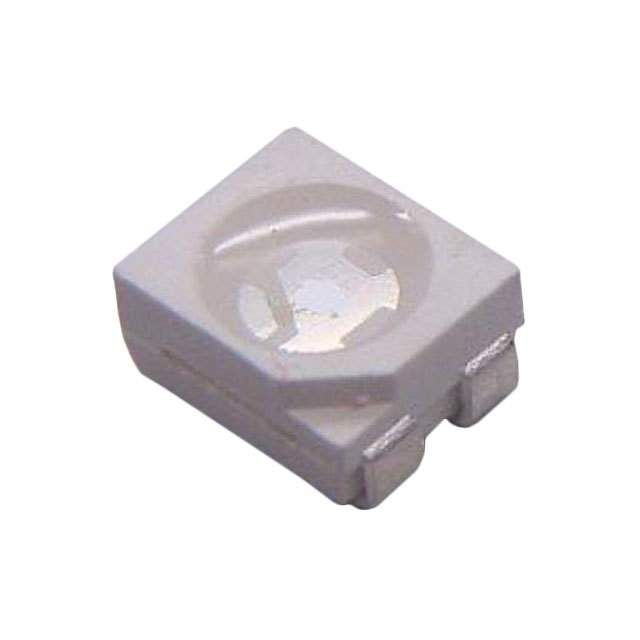

Single Color LED emitter, red illumination, featuring a clear, colorless round lens. This surface mount component is housed in a PLCC package with dimensions of 3.2mm length, 2.7mm width, and 2.05mm height. It operates with a forward current of 50mA, a reverse voltage of 5V, and a power dissipation of 210W. Offering a luminous intensity of 2100mcd and a wide 120° viewing angle, it is RoHS compliant and suitable for operating temperatures from -40°C to 100°C.
PackagePLCC
MountingSurface Mount
Power210W
Quick Jump:
Technical Specifications
Cree CLM4B-RKW-CWBXBAA3 technical specifications.
General
Package/Case
PLCC
Color
Red
Depth
3.2mm
Forward Current
50mA
Height
2.05mm
Illumination Color
Red
Length
3.2mm
Lens Color
Colorless
Lens Style
Round
Lens Transparency
Clear
Luminous Intensity
2100mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
210W
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
120°
Width
2.7mm
Compliance
RoHS
Compliant
