Triple color LED emitter featuring red, green, and blue elements in a surface-mount PLCC package. This diffused, flat, round lens LED offers a 120° viewing angle and a luminous intensity of 420mcd. Designed for a 20mA forward current and 5V reverse voltage, it operates within a -40°C to 100°C temperature range. The component measures 6mm in length, 5mm in width, and 2.6mm in height, with a 5mm depth.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Cree CLP6C-FKB-CK1P1G1BB7R3R3 technical specifications.
General
| Package/Case | PLCC |
| Color | Blue, Green, Red |
| Depth | 5mm |
| Forward Current | 20mA |
| Height | 2.6mm |
| Length | 6mm |
| Lens Color | White |
| Lens Style | Round, Flat, Diffused |
| Lens Transparency | Diffused |
| Luminous Intensity | 420mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Number of LEDs | 3 |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Cree CLP6C-FKB-CK1P1G1BB7R3R3 Datasheet
Download the complete datasheet for Cree CLP6C-FKB-CK1P1G1BB7R3R3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

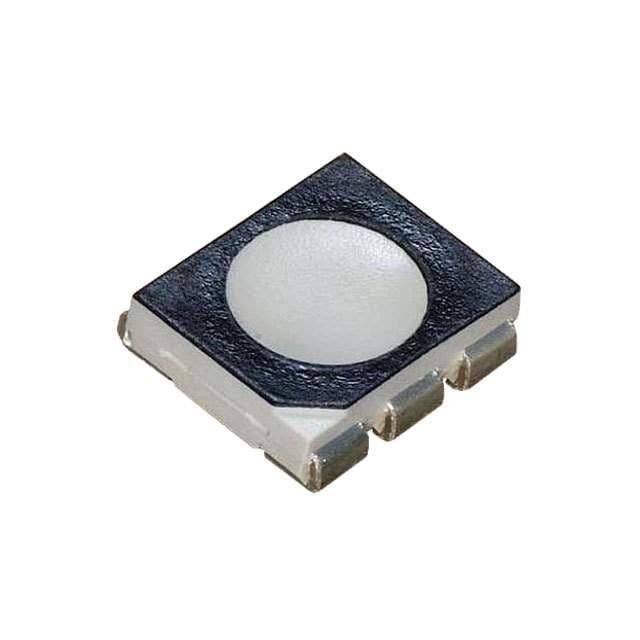

Product Images
