High-brightness, RGB LED emitter in a PLCC package for surface mounting. Features three elements with a diffused, round lens style and a 110° viewing angle. Operates with a 20mA forward current and a 5V reverse voltage, offering a luminous intensity of 74mcd. Maximum power dissipation is 130mW, with an operating temperature range of -40°C to 100°C. Dimensions are 3.5mm (length) x 2.8mm (width) x 1.9mm (height), with a depth of 3.2mm. RoHS compliant and supplied on tape and reel.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Cree CLVBA-FKA-CAEDH8BBB7A363 technical specifications.
General
| Package/Case | PLCC |
| Color | Blue, Green, Red |
| Depth | 3.2mm |
| Forward Current | 20mA |
| Height | 1.9mm |
| Length | 3.5mm |
| Lens Style | Diffused, Round |
| Luminous Intensity | 74mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 130mW |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | CLVBA-FKA |
| Viewing Angle | 110° |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Cree CLVBA-FKA-CAEDH8BBB7A363 Datasheet
Download the complete datasheet for Cree CLVBA-FKA-CAEDH8BBB7A363 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

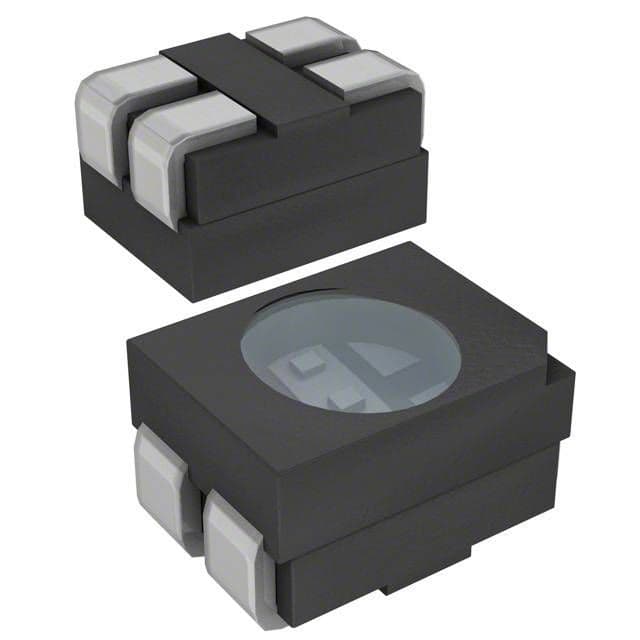

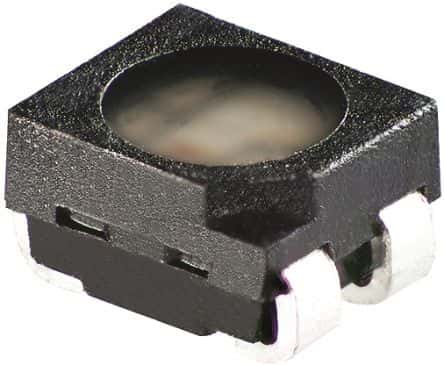

Product Images
