Surface mount, multiple color LED array featuring four elements emitting White, Blue, Green, and Red light. Delivers 80 lumens luminous flux at a 350mA forward current, with a maximum rating of 700mA. Boasts a 4300K correlated color temperature and a 75 CRI for the white illumination. Encased in a 7mm x 7.5mm x 4.48mm SMD/SMT package with a dome lens style and a 115° viewing angle. This RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Cree MCE4CT-A2-0000-00A4AAAB1 technical specifications.
General
| Package/Case | SMD/SMT |
| Color | White, Blue, Green, Red |
| Color Rendering Index (CRI) | 75 |
| Correlated Color Temperature (CCT) | 4300K |
| Depth | 7.5mm |
| Forward Current | 350mA |
| Height | 4.48mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 7mm |
| Lens Style | Dome |
| Luminous Flux | 80lm |
| Max Current Rating | 700mA |
| Mount | Surface Mount |
| Number of Elements | 4 |
| Number of LEDs | 4 |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | XLamp MC-E |
| Test Temperature | 25°C |
| Thermal Resistance of Package | 6°C/W |
| Viewing Angle | 115° |
| Wavelength | 458nm |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Cree MCE4CT-A2-0000-00A4AAAB1 Datasheet
Download the complete datasheet for Cree MCE4CT-A2-0000-00A4AAAB1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

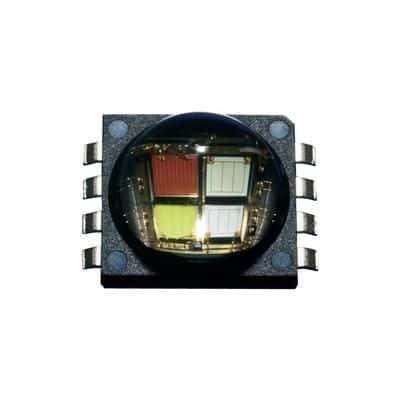

Product Images
