This 24V brushed DC motor has a maximum operating speed of 143RPM and is designed for external mounting with a 1.874inch hole spacing. It operates within a 24V DC supply voltage and features a solder termination. The motor measures 65.9mm in depth, 61.3mm in length, and 54.2mm in width, with a weight of 0.353lb. The motor is rated for 24V DC and is suitable for use in a variety of applications.
MountingExternal
Quick Jump:
Technical Specifications
Crouzet 82861017 technical specifications.
General
| Depth | 65.9mm |
| Length | 61.3mm |
| Motor Type | Brushed |
| Mount | External |
| Mounting Hole Spacing | 1.874inch |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| RPM | 143RPM |
| Termination | Solder |
| DC Rated Voltage | 24V |
| Weight | 0.353lb |
| Width | 54.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 82861017 Datasheet
Download the complete datasheet for Crouzet 82861017 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

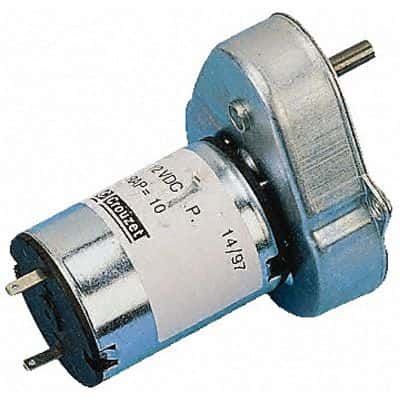

Product Images
