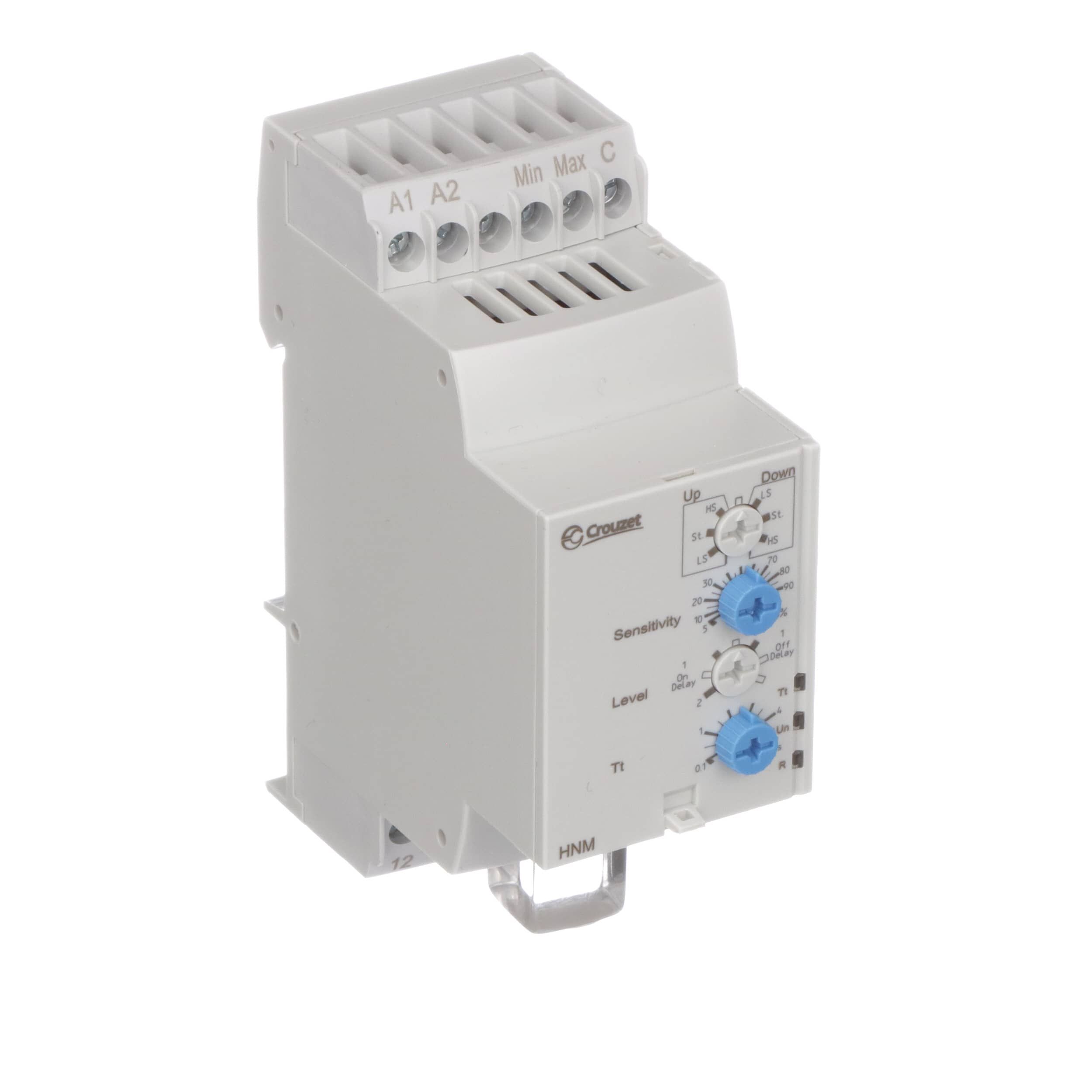

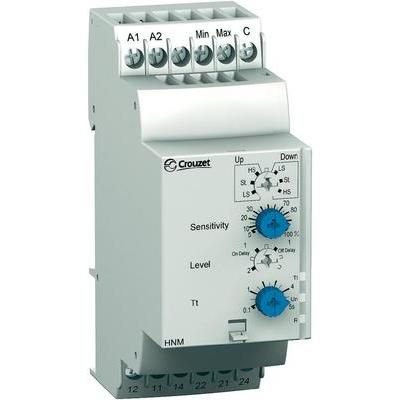

Liquid level control relay featuring 2 change-over (DPDT) contacts. Operates with a control voltage of 24V and a supply voltage range of 24-240VAC/DC. Designed for DIN rail mounting with screw termination. Offers a temperature range of -20°C to 50°C and IP30/IP20 protection ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crouzet 84870700 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crouzet 84870700 technical specifications.
| Contact Type | 2 change-overs |
| Control Voltage | 24V |
| Height | 69mm |
| Length | 92.6mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage (DC) | 240V |
| Min Supply Voltage (DC) | 24V |
| Max Supply Voltage | 240V |
| Mount | DIN Rail |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Number of Poles | 2 |
| Output Type | RELAY |
| Overall Depth | 90mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP30, IP20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C-Lynx HNM |
| Size | 35mm |
| Termination | Screw |
| Throw Configuration | DPDT |
| Weight | 0.254lb |
| Width | 35mm |
| RoHS | Compliant |
