Programmable and fixed time delay relay featuring a 10A supply current and 8A contact current rating with silver contacts. Offers 240V AC and 24V DC coil voltage options, with a 250V AC voltage rating. Mounts via DIN rail and utilizes screw termination. Operates within a -20°C to 60°C temperature range with 0.5% accuracy.
Package100
Current10A
Current Rating8A
MountingDIN Rail
Quick Jump:
Technical Specifications
Crouzet 88826135 technical specifications.
General
| Accuracy | 0.5% |
| Approvals | UL, CSA, CE |
| Package/Case | 100 |
| Coil Voltage (AC) | 240V |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Current Rating | 8A |
| Depth | 60mm |
| Height | 81mm |
| Length | 81mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Min Supply Voltage | 24V |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Operating Supply Voltage | 240V |
| Output Current | 8A |
| Package Quantity | 1 |
| Power Consumption | 1.5W |
| Reach SVHC Compliant | Unknown |
| Series | MCR1 |
| Supply Current | 10A |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 17.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 88826135 Datasheet
Download the complete datasheet for Crouzet 88826135 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

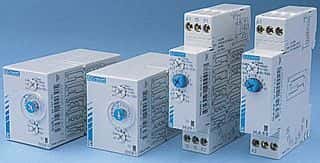

Product Images
