Programmable and fixed time delay relay featuring SPDT contacts with silver contact material and an 8A contact current rating. Operates with AC supply voltages from 24V to 240V, with a nominal input voltage of 240VAC and a 24VAC/24VDC coil option. Offers a 10% accuracy and a 250VAC voltage rating, with a maximum operating temperature of 60°C. Mounts via DIN rail and utilizes screw termination. Approvals include UL, CSA, and CE, with an IP50 rating.
Package100
Current Rating8A
MountingDIN Rail
Power1.5W
Quick Jump:
Technical Specifications
Crouzet 88865115 technical specifications.
General
| Accuracy | 10% |
| Approvals | UL, CSA, CE |
| Package/Case | 100 |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Current Rating | 8A |
| Depth | 95mm |
| Height | 78mm |
| Length | 78mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Min Supply Voltage | 24V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240V |
| Nominal Supply Current | 10A |
| Number of Contacts | 1 |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Power Consumption | 1.5W |
| Ratings | IP50 |
| Reach SVHC Compliant | Unknown |
| Series | TAR1 |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 22.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 88865115 Datasheet
Download the complete datasheet for Crouzet 88865115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

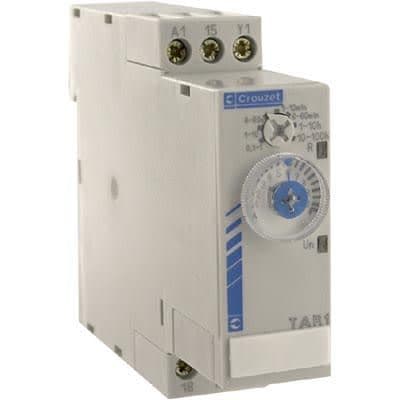

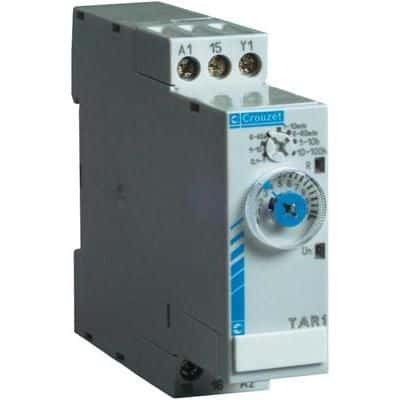

Product Images
