DPDT time delay relay with 8A contact current rating and silver contacts, featuring a 100-hour adjustable time delay and 0.5% accuracy. Operates on 240V AC supply voltage with a 1.5W power consumption. Mounts via DIN rail and offers screw termination. Rated IP50, UL, CSA, and CE approved, with an operating temperature range of -20°C to 60°C.
Current Rating8A
MountingDIN Rail
Power1.5W
Quick Jump:
Technical Specifications
Crouzet 88865265 technical specifications.
General
| Accuracy | 0.5% |
| Approvals | UL, CSA, CE |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Current Rating | 8A |
| Depth | 95mm |
| Height | 78mm |
| Length | 78mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Mount | DIN Rail |
| Nominal Supply Current | 10A |
| Number of Contacts | 2 |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Power Consumption | 1.5W |
| Ratings | IP50 |
| Reach SVHC Compliant | Unknown |
| Series | TK2R1 |
| Termination | Screw |
| Throw Configuration | DPDT |
| Width | 22.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Crouzet 88865265 Datasheet
Download the complete datasheet for Crouzet 88865265 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

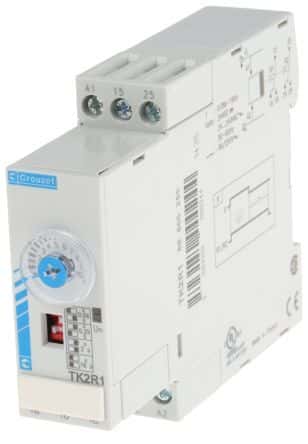

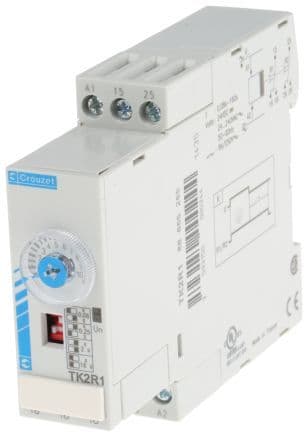

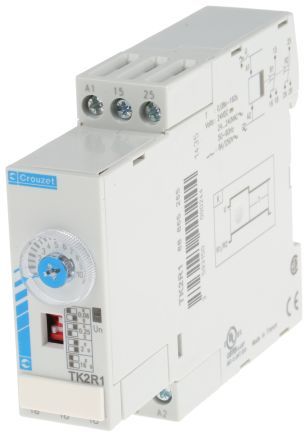

Product Images
