Solid State Relay with 50A RMS current rating and 280V AC output. Features DC input from 10mA to 32V, 4kV isolation voltage, and 1mA leakage current. Designed for panel or chassis mounting with screw termination, this DPST relay operates within a -40°C to 80°C temperature range and offers a 750A surge current capability.
Current Rating50A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom CC2450W3VR technical specifications.
General
Current Rating
50A
Depth
45.72mm
Height
36.2mm
Input Type
DC
Isolation Voltage
4kV
Leakage Current
1mA
Length
58.42mm
Load Current
50A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Supply Voltage
280V
Min Supply Voltage
24V
Max Surge Current
750A
Mount
Panel, Chassis Mount, Screw
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
No
Relay Type
Relay
RMS Current (Irms)
50A
RoHS Compliant
Yes
Series
Evolution Dual
Termination
Screw
Throw Configuration
DPST
Width
66.93mm
Compliance
RoHS
Compliant
Datasheet
Crydom CC2450W3VR Datasheet
Download the complete datasheet for Crydom CC2450W3VR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

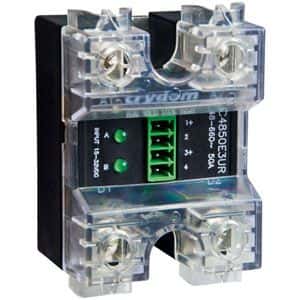

Product Images
