Solid State Relay (SSR) with 50A RMS current rating and 600V AC maximum output voltage. Features DC input with 10mA input current and 4kV isolation voltage. Designed for panel or chassis mounting with screw termination, offering DPST throw configuration. Operating temperature range from -40°C to 80°C, with a 750A maximum surge current capability.
Current Rating50A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom CC4850W3V technical specifications.
General
Current Rating
50A
Depth
45.72mm
Height
36.3mm
Input Current
10mA
Input Type
DC
Isolation Voltage
4kV
Leakage Current
1mA
Length
66.9mm
Load Current
50A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Voltage
600V
Max Surge Current
750A
Mount
Panel, Chassis Mount, Screw
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Ratings
IP20
Reach SVHC Compliant
No
Relay Type
Relay
RMS Current (Irms)
50A
RoHS Compliant
Yes
Series
Evolution Dual
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
660V
Width
45.7mm
Compliance
RoHS
Compliant
Datasheet
Crydom CC4850W3V Datasheet
Download the complete datasheet for Crydom CC4850W3V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

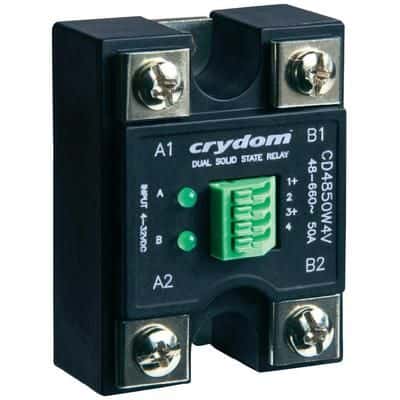

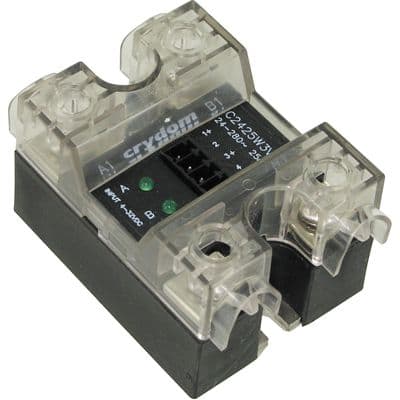

Product Images
