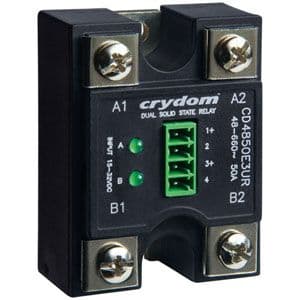

The CD4850W3VR is a solid state relay with a DPST configuration, capable of handling 50A of load current. It operates within a temperature range of -40°C to 80°C and is designed for panel or chassis mount applications. The relay is packaged in a ROHS compliant, plastic package-8 format and is available in quantities of 20. It is suitable for use in a variety of applications, including those requiring AC and DC output.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom CD4850W3VR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom CD4850W3VR technical specifications.
| Depth | 45.72mm |
| Height | 36.2mm |
| Input Type | DC |
| Length | 58.42mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Chassis Mount, Screw |
| Package Quantity | 20 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | Evolution Dual |
| Termination | Screw |
| Throw Configuration | DPST |
| RoHS | Compliant |
Download the complete datasheet for Crydom CD4850W3VR to view detailed technical specifications.
