AC output solid state relay featuring a 10A load current rating and a 280V AC maximum output voltage. Input specifications include 10mA input current and 24V to 280V AC input voltage range. This SPST relay offers 4kV isolation voltage and operates within a -30°C to 80°C temperature range. Panel or chassis mounting is supported via screw terminals.
Current Rating10A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom CL240A10C technical specifications.
General
Current Rating
10A
Depth
32.8mm
Height
58.2mm
Input Current
10mA
Input Type
AC
Isolation Voltage
4kV
Length
44.5mm
Load Current
10A
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Max Output Voltage
280V
Max Supply Voltage (AC)
280V
Min Supply Voltage (AC)
24V
Max Voltage Rating (AC)
280V
Mount
Panel, Chassis Mount, Screw
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
No
Series
CL
Termination
Screw
Throw Configuration
SPST
Turn-On Delay Time
50ms
Compliance
RoHS
Not CompliantNo
Datasheet
Crydom CL240A10C Datasheet
Download the complete datasheet for Crydom CL240A10C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

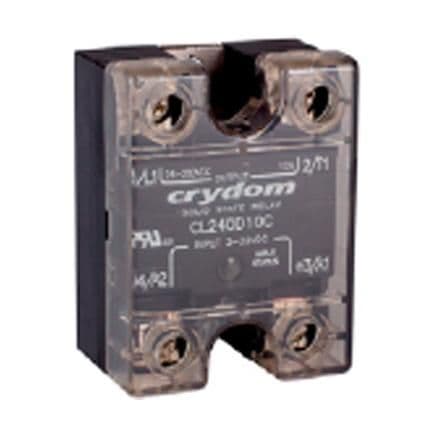

Product Images
