AC output solid-state relay, 10A load current, 280V AC maximum output voltage. Features AC input with 15mA input current, 4kV isolation voltage, and silver contact material. Panel or chassis mountable with screw termination. Operates across a -40°C to 80°C temperature range and is RoHS compliant. Approvals include UL, CSA, VDE, and CE.
Current Rating10A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom CWA2410E technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Contact Material | Silver |
| Current Rating | 10A |
| Height | 33mm |
| Input Current | 24mA |
| Input Type | AC |
| Isolation Voltage | 4kV |
| Length | 58.4mm |
| Load Current | 10A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 280V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 10A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | CW24 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 280V |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CWA2410E Datasheet
Download the complete datasheet for Crydom CWA2410E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

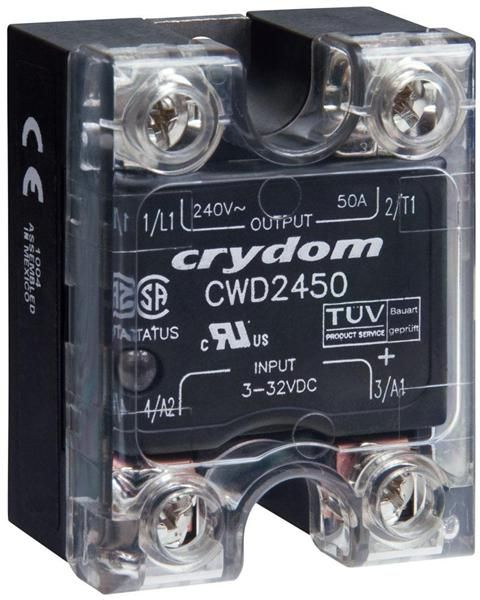

Product Images
