AC & DC Output Solid State Relay featuring a 50A RMS current rating and 660V AC maximum output voltage. This relay accepts a 32V DC input with a 15mA input current requirement. It offers 4kV isolation voltage and a 1mA leakage current. Designed for panel or chassis mounting with screw termination, it operates across a -40°C to 80°C temperature range and is RoHS compliant.
Current Rating50A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom CWD4850-10 technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Contact Material | Silver |
| Current Rating | 50A |
| Depth | 58.4mm |
| Height | 33mm |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Leakage Current | 1mA |
| Length | 45.7mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 660V |
| Max Supply Voltage | 660V |
| Min Supply Voltage | 48V |
| Max Surge Current | 850A |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 50A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RMS Current (Irms) | 50A |
| RoHS Compliant | Yes |
| Series | CW48 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 660V |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CWD4850-10 Datasheet
Download the complete datasheet for Crydom CWD4850-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

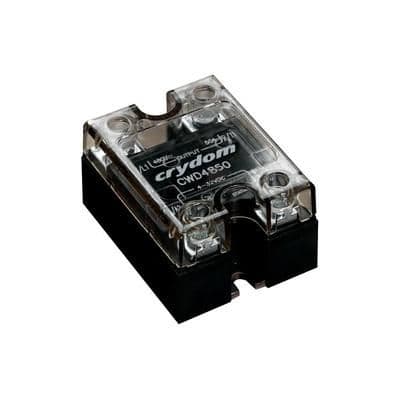

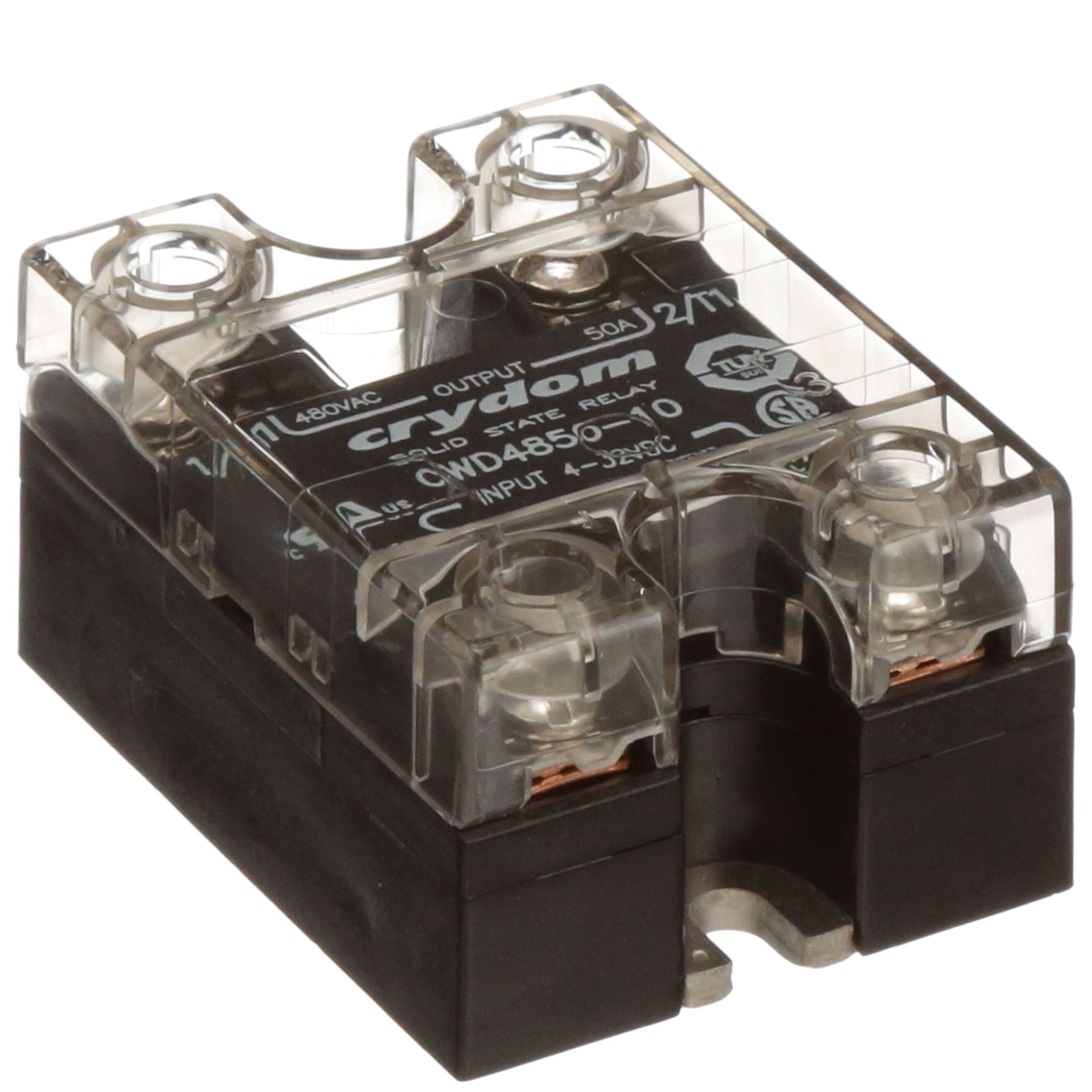

Product Images
