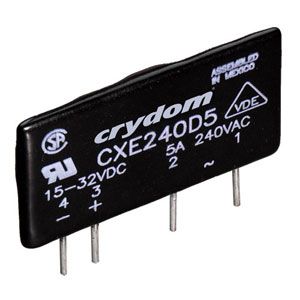

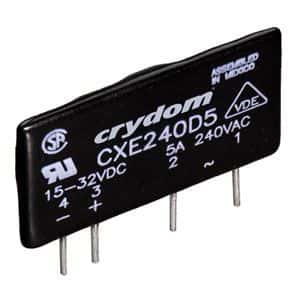

Solid State Relay (SSR) with 5A AC output at 280V, featuring a 15mA DC input control voltage of 15V. This SIP package relay offers 4kV isolation voltage and is designed for PCB through-hole mounting. Operating temperature range is -30°C to 80°C, with a maximum surge current of 250A. The component is RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom CX240D5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom CX240D5 technical specifications.
| Package/Case | SIP |
| Control Voltage | 15V |
| Depth | 7.6mm |
| Height | 25.4mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 43.1mm |
| Load Current | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Max Surge Current | 250A |
| Mount | PCB, Through Hole |
| Operating Supply Voltage | 280V |
| Output Current | 5A |
| Output Voltage | 280V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | PCB |
| Throw Configuration | SPST |
| Weight | 11g |
| Width | 25.4mm |
| RoHS | Compliant |
