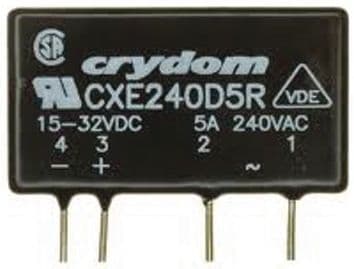

The CXE240D5R is a solid state relay with a maximum output voltage of 280V and a maximum load current of 5A. It has a package type of SIP and a mount type of through hole. The relay operates within a temperature range of -30°C to 80°C and is RoHS compliant. It also features an isolation voltage of 4kV and an input current of 15mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom CXE240D5R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom CXE240D5R technical specifications.
| Package/Case | SIP |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Load Current | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Mount | Through Hole |
| Output Current | 5A |
| Package Quantity | 40 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CX |
| Termination | Solder |
| RoHS | Compliant |
