Solid State Relay (SSR) with 5A RMS output current and 660V AC maximum output voltage. Features a 32V DC control input requiring 15mA and 1.5kΩ input impedance. Offers 4kV isolation voltage and a 100µA leakage current. Packaged in a 4-pin SIP for through-hole mounting, operating between -30°C and 80°C.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Crydom CXE480D5 technical specifications.
General
| Package/Case | SIP |
| Control Voltage | 32V |
| Input Current | 15mA |
| Input Impedance | 1.5kR |
| Input Type | DC |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Leakage Current | 100uA |
| Load Current | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5A |
| Max Output Voltage | 660V |
| Max Surge Current | 250A |
| Mount | Through Hole |
| Operating Supply Voltage | 660V |
| Output Current | 5A |
| Output Voltage | 660V |
| Package Quantity | 40 |
| Packaging | Bulk |
| Pin Length | 7.6mm |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RMS Current (Irms) | 5A |
| RoHS Compliant | Yes |
| Series | CX |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 43.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CXE480D5 Datasheet
Download the complete datasheet for Crydom CXE480D5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

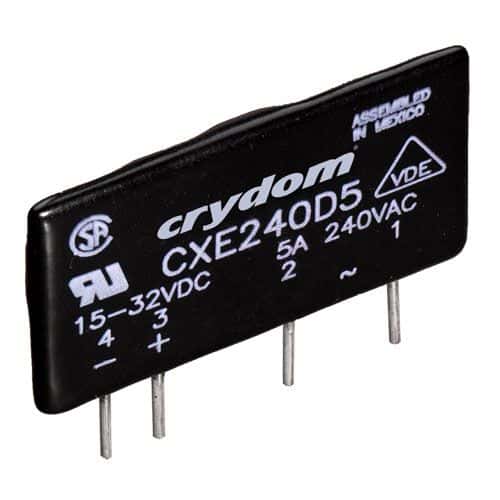

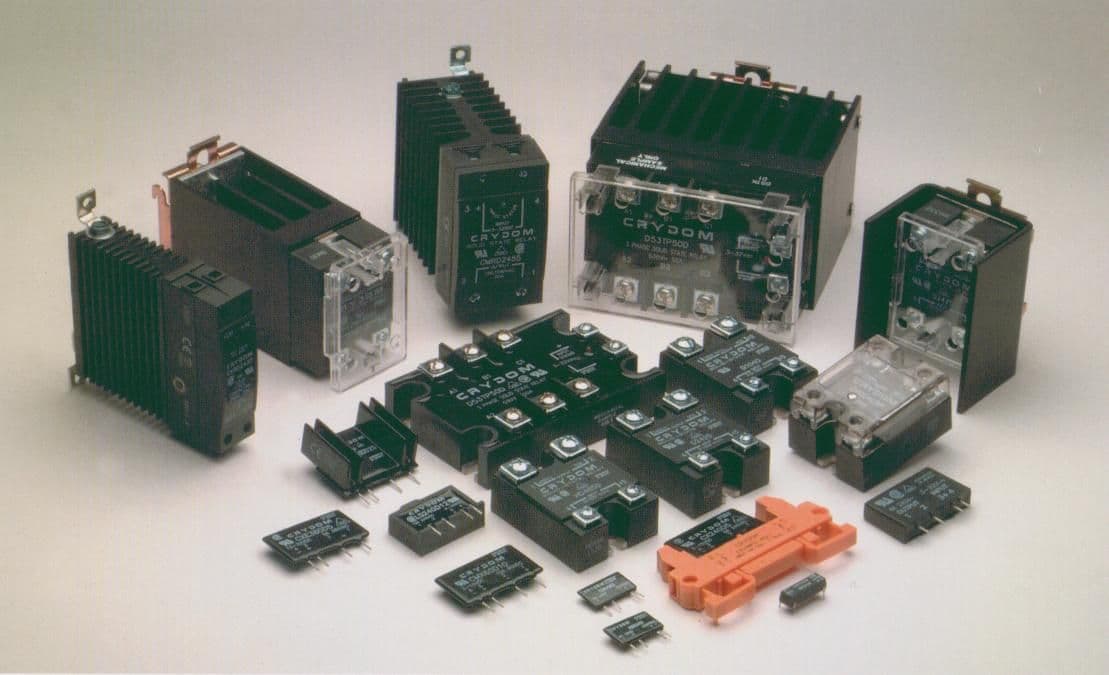

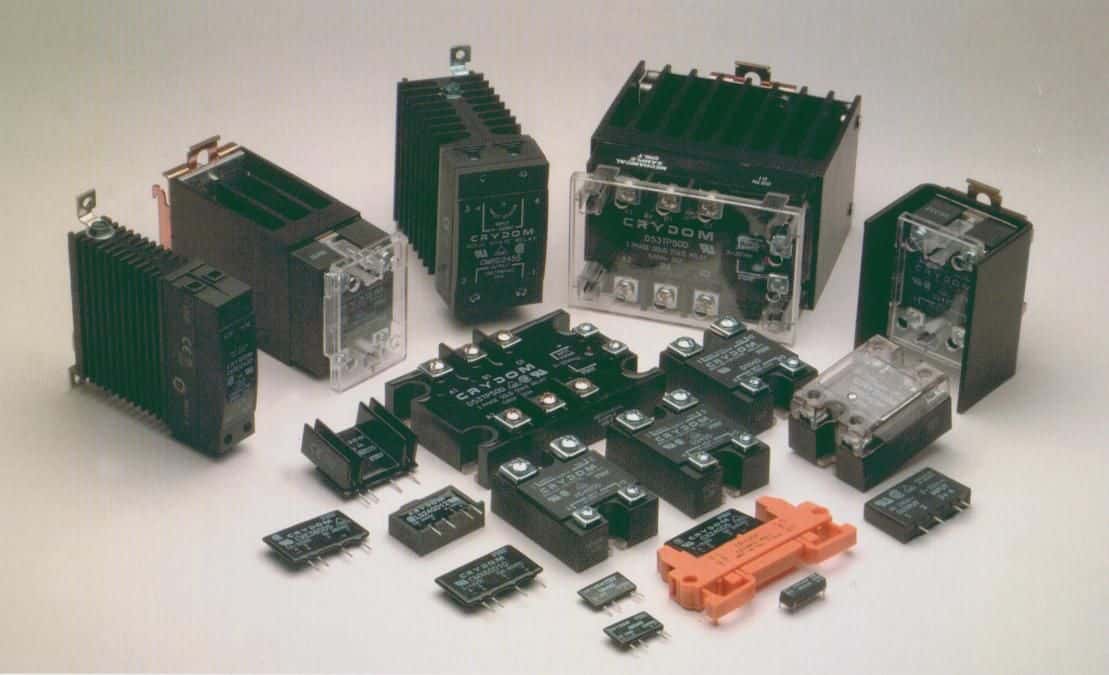

Product Images
