Technical Specifications
Crydom D2440 technical specifications.
General
| Control Voltage | 280V |
| Depth | 23mm |
| Height | 58.4mm |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 40A |
| Max Input Current | 20mA |
| Max Input Voltage | 32V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Mount | Surface Mount, Screw |
| Output Current | 40A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Width | 44.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom D2440 Datasheet
Download the complete datasheet for Crydom D2440 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

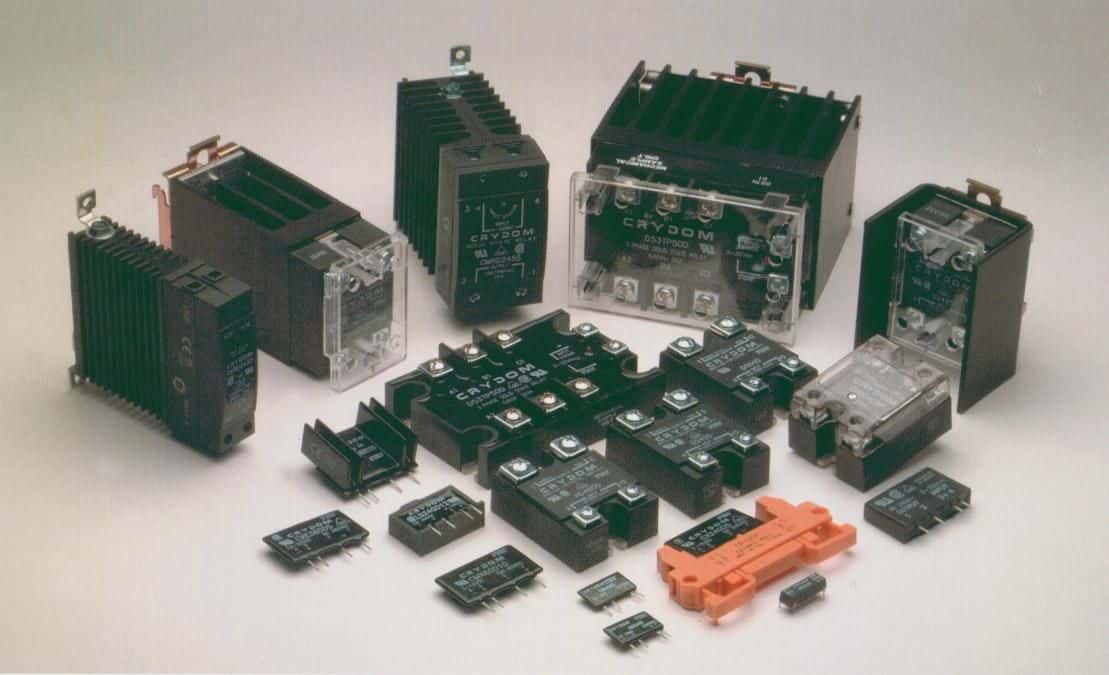

Product Images
