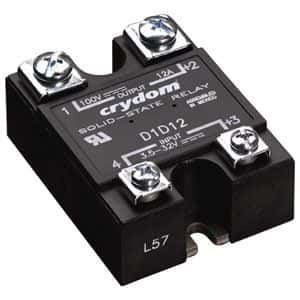

AC & DC Output Solid State Relay featuring a 12A load current rating and 200V DC output voltage. Input control is DC, requiring a maximum of 10.6mA for operation. This relay offers 2.5kV isolation and a panel/chassis mount design with screw termination. Operating temperature range is -40°C to 80°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom D2D12L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current Rating | 12A |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Load Current | 12A |
| Max Input Current | 10.6mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Output Voltage | 200V |
| Max Supply Voltage (DC) | 200V |
| Min Supply Voltage (DC) | 0V |
| Max Voltage Rating (DC) | 200V |
| Mount | Panel, Chassis Mount, Screw |
| On-State Resistance | 230mR |
| Operating Supply Voltage | 200V |
| Output Current | 12A |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | 1-DCL |
| Termination | Screw |
| Throw Configuration | SPST |
| RoHS | Compliant |
