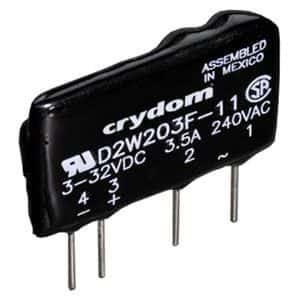

Solid State Relay (SSR) with 3.5A AC output and 32V DC input. Features 3mA input current, 280V AC output voltage, and 280V AC operating supply voltage. SIP package with through-hole PCB mounting. Includes 4kV isolation voltage and operates from -30°C to 80°C. UL, CSA, and CE approved, RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom D2W203F-11 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom D2W203F-11 technical specifications.
| Approvals | UL, CSA, CE |
| Capacitance | 10pF |
| Package/Case | SIP |
| Control Voltage | 32V |
| Current Rating | 3.5A |

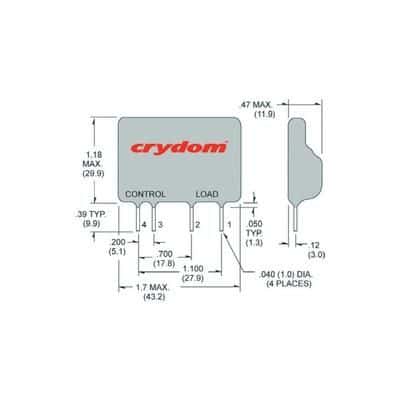

| Height | 11.9mm |
| Input Current | 3mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 43.2mm |
| Load Current | 3.5A |
| Max Input Current | 3mA |
| Max Input Voltage | 32V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 3.5A |
| Max Output Voltage | 280V |
| Max Supply Voltage (DC) | 200V |
| Min Supply Voltage (DC) | 0V |
| Max Surge Current | 70A |
| Max Voltage Rating (DC) | 200V |
| Mount | Through Hole, PCB |
| Operating Supply Voltage | 280V |
| Output Current | 3.5A |
| Output Voltage | 280V |
| Package Quantity | 30 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | D2W |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating | 280V |
| Width | 29.9mm |
| RoHS | Compliant |
